Pilot Ladder and Embarkation Ladder
สายยาง POWERFLEX รุ่น OSD150 Antistatic Hose
December 19, 2019License and Certificate
April 9, 2020To whom it may concern
PILOT LADDER and EMBARKATION LADDER is comply with following specification.
SOLAS Chapter V Regulation 23.2.3
- ISO 799-1:2019 ( pdf 348 KB )
- JIS F2615 ( pdf 836 KB )
Construction details of pilot ladder
Drawing of Pilot Ladder Type A and Embarkation ladder

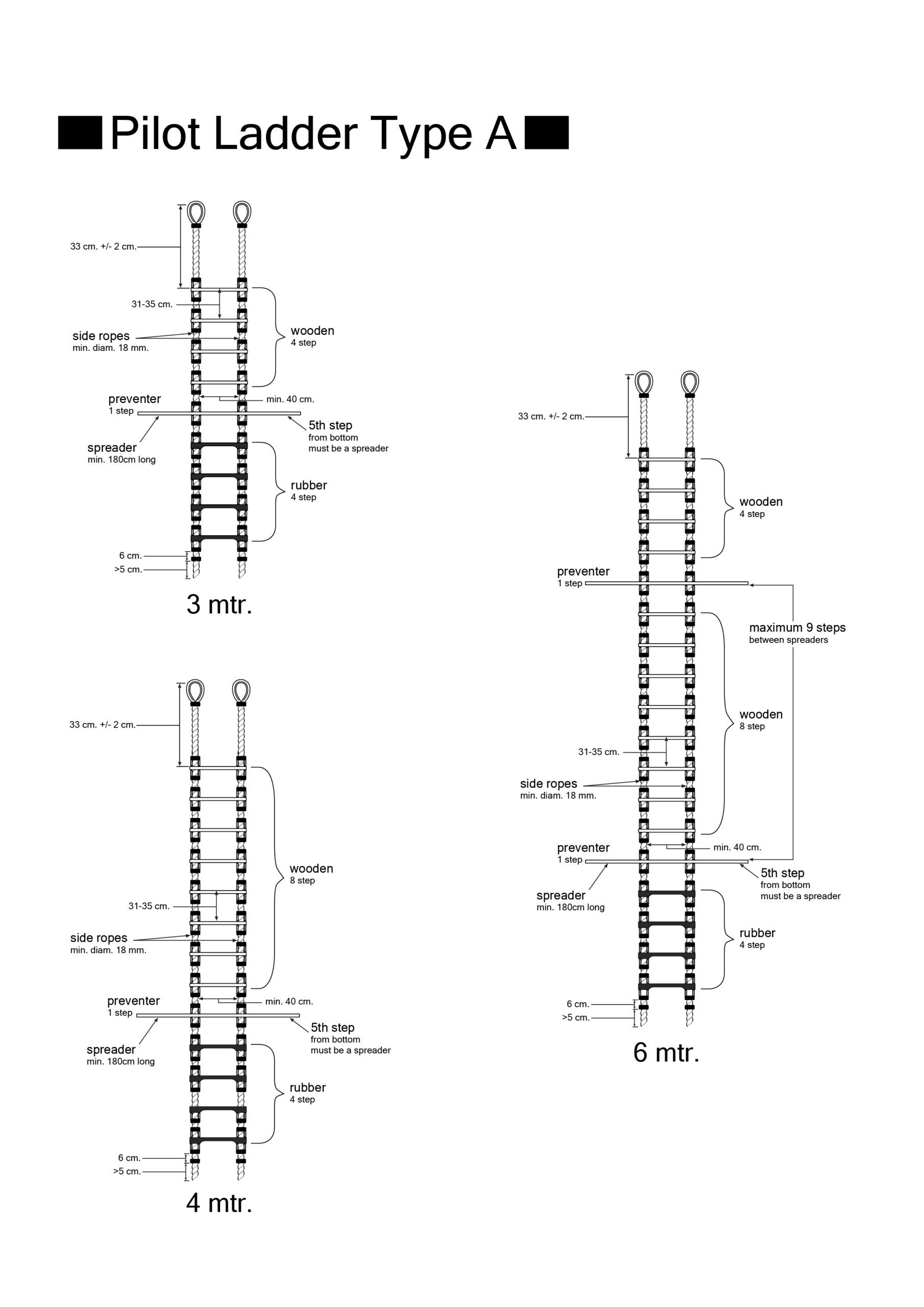

- Pilot Ladder Size 3mtr, 4mtr and 6mtr (jpg 681 KB)

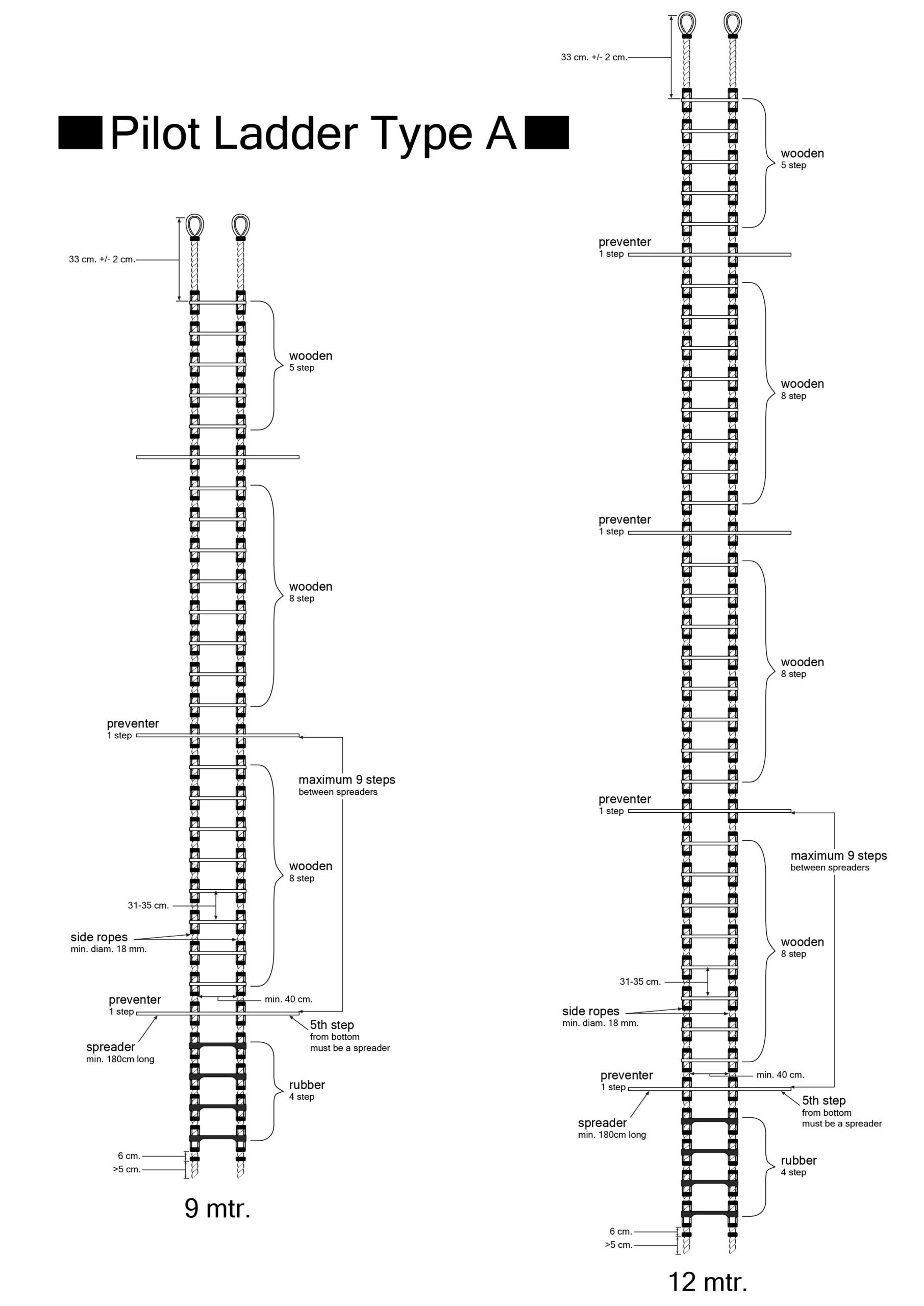

- Pilot Ladder Size 9mtr and 12mtr (jpg 810 KB)

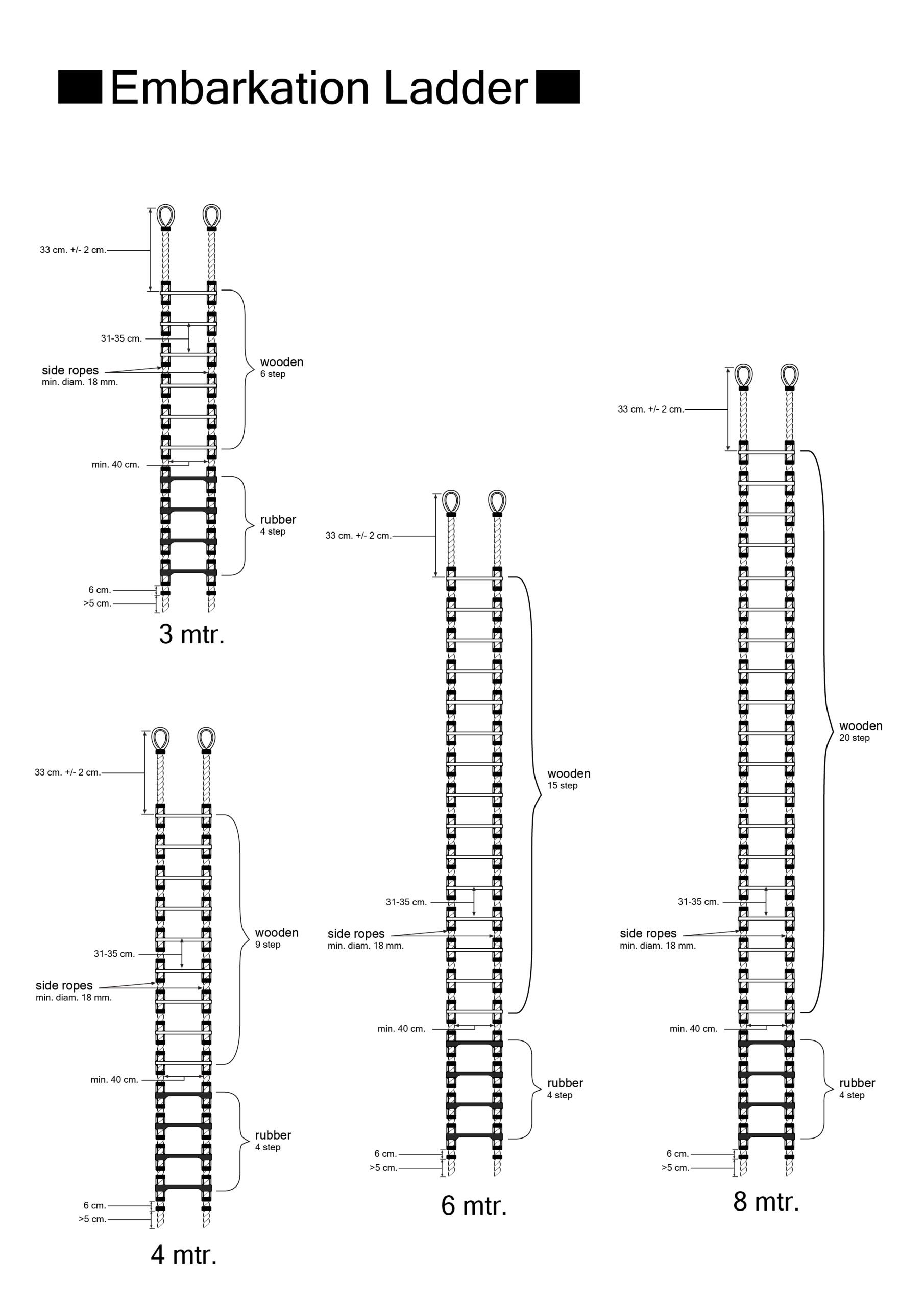

- Embarkation Ladder Size 3mtr, 4mtr, 6mtr and 8mtr (jpg 792 KB)

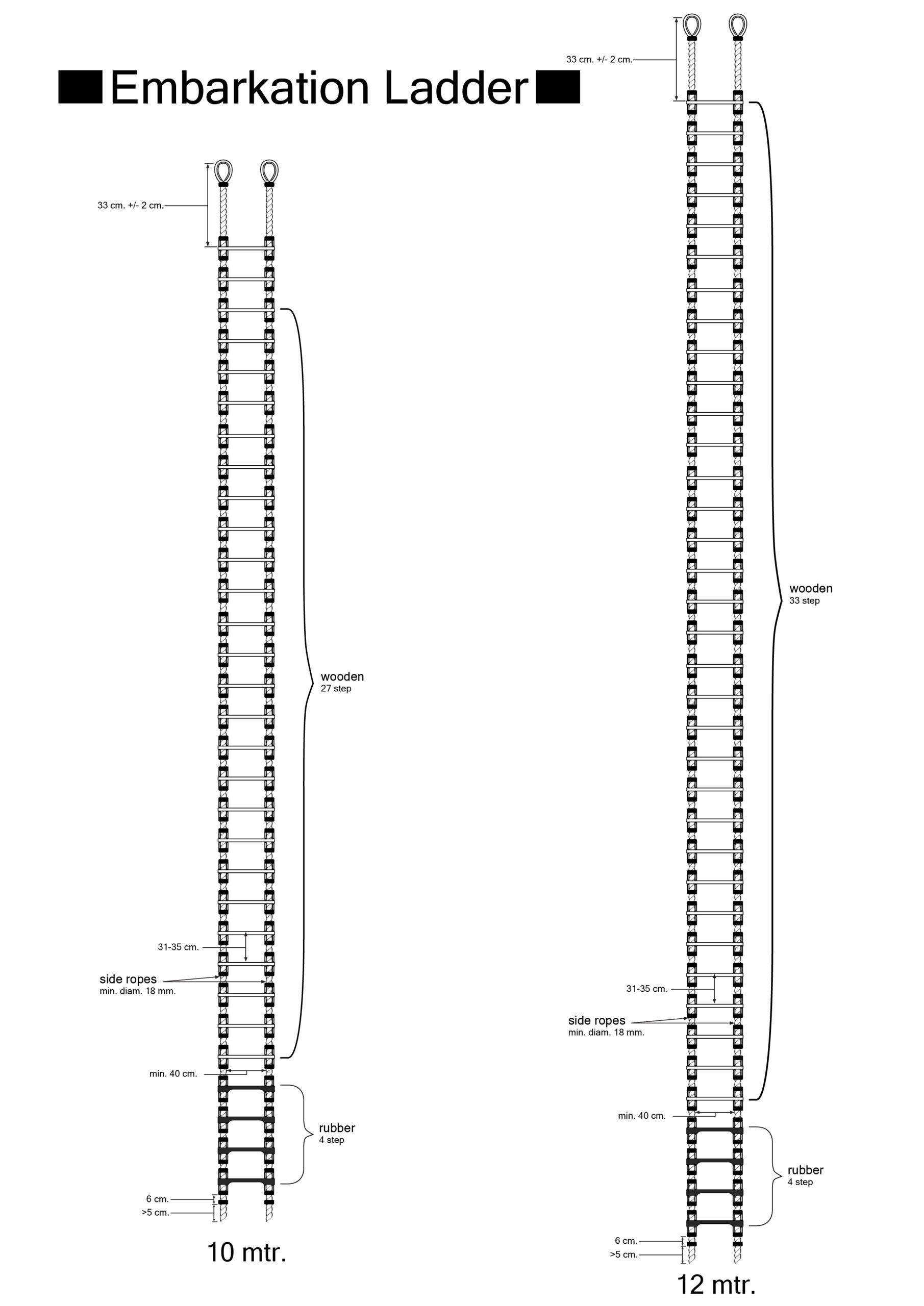

- Embarkation Ladder Size 10mtr and 12mtr (jpg 694 KB)
Number of steps and relative positions of spreaders
List of Pilot ladder
| ID | Length of Pilot Ladder | Construction | Position of Spreader | ||
| 32652 | 3mtr | 4 x Step 1 x Spreader 4 x Rubber step | No. 5 | Buy | |
| 32653 | 4mtr | 8 x Step 1 x Spreader 4 x Rubber step | No. 5 | Buy | |
| 39497 | 6mtr | 12 x Step 2 x Spreader 4 x Rubber step | No. 5 No. 14 | Buy | |
| 39498 | 9mtr | 21 x Step 3 x Spreader 4 x Rubber step | No. 5 No. 14 No. 23 | Buy | |
| 39499 | 12mtr | 29 x Step 4 x Spreader 4 x Rubber step | No. 5 No. 14 No. 23 No. 32 | Buy | |
| 12927 | Made to order | Please call | |||
List of Embarkation Ladder
| ID | Length of Embarkation Ladder | CONSTRUCTION | |||
| 32657 | 3mtr | 6 x Step 4 x Rubber step | Buy | ||
| 32655 | 4mtr | 9 x Step 4 x Rubber step | Buy | ||
| 39500 | 6mtr | 15 x Step 4 x Rubber step | Buy | ||
| 39502 | 8mtr | 20 x Step 4 x Rubber step | Buy | ||
| 39501 | 10mtr | 27 x Step 4 x Rubber step | Buy | ||
| 39503 | 12mtr | 33 x Step 4 x Rubber step | Buy | ||
| 12928 | Made to order | Please call |
